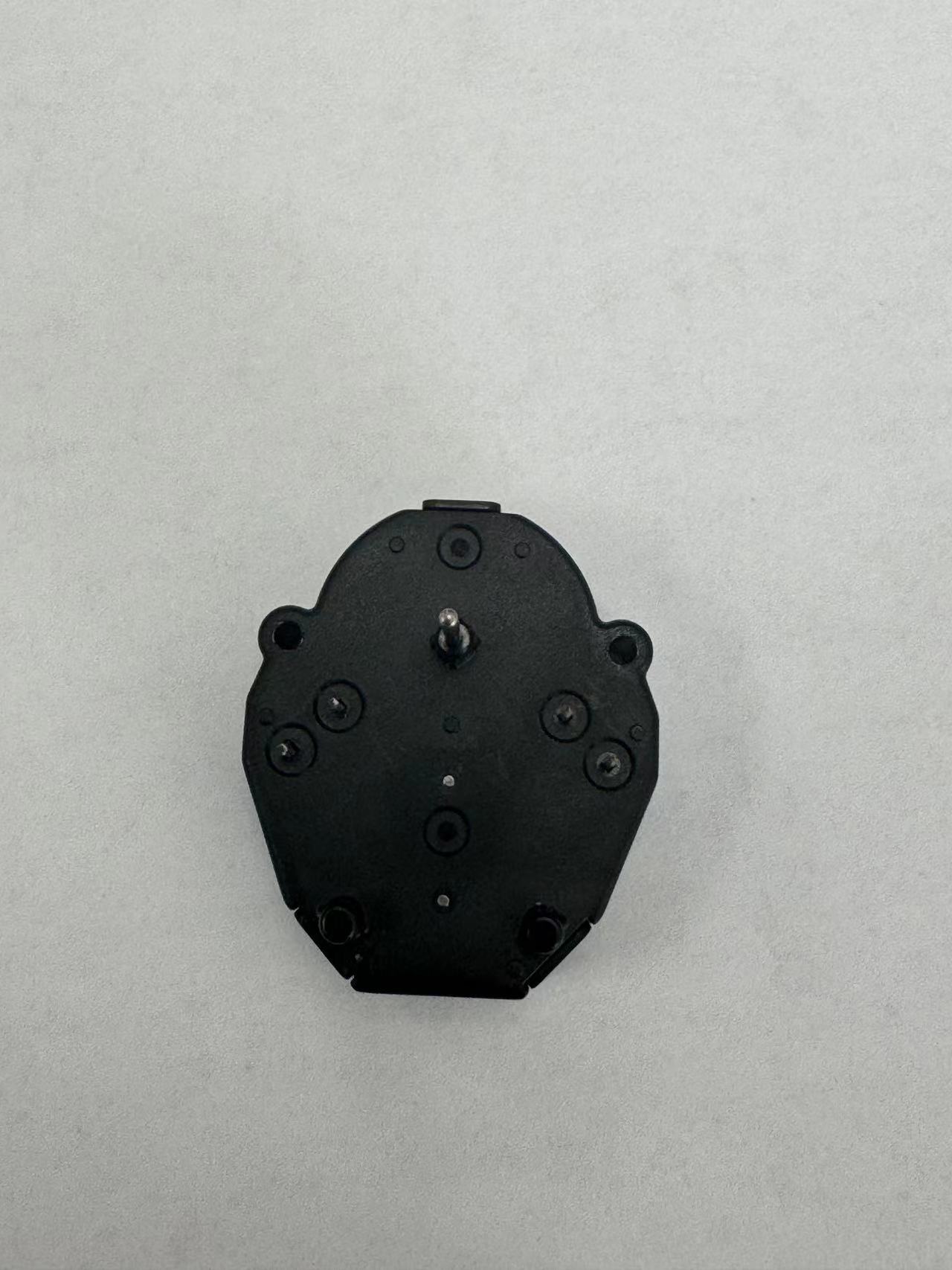

VID38 Series Cluster Stepper Motor

VID38 is a design integration of robust mechanical system and efficient micro-electromagnetic system. Chinese patent(201420786784.0 ). Features on smoothness of rotor running and specific gear design bring outstanding low noise performance (~ 26 dbA @ 100Hz ). Together with high efficient electro-magnetic design contribute high dynamic torque output up to 1900 uNm.

VID38 Series Cluster Stepper Motor DIMENSIONS

Main Features

High speed rotation: 600°/sec.
High μ-step resolution: 1/12°.
Wide working voltage: 3.5~10V.
Wide working temperature: -40 ~ 10℃.
Low current consumption.
Extremely robust construction: Ф31mm X 9.7mm

Applications

Automotive cluster
Motorbike cluster
Digital instrumentation system.

product

VID38-M7P

VID38 is a design integration of robust mechanical system and efficient micro-electromagnetic system. Chinese patent(201420786784.0 ). Features on smoothness of rotor running and specific gear design bring outstanding low noise performance (~ 26 dbA @ 100Hz ). Together with high efficient electro-magnetic design contribute high dynamic torque output up to 1900 uNm.

VID38-05

VID38 is a design integration of robust mechanical system and efficient micro-electromagnetic system. Chinese patent(201420786784.0 ). Features on smoothness of rotor running and specific gear design bring outstanding low noise performance (~ 26 dbA @ 100Hz ). Together with high efficient electro-magnetic design contribute high dynamic torque output up to 1900 uNm.
